Type 316 Pocket Style Chainwheel for 316L Welded Machine Chain

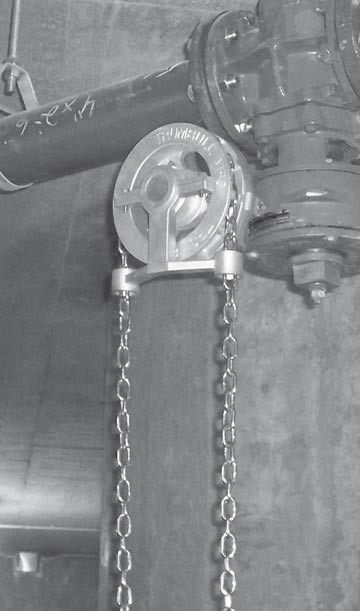

Stainless Steel ChainwheelOUR STAINLESS STEEL CHAINWHEELS allow operation of overhead valves by means of a slight pull on the chain. Universal design allows Chainwheel to be clamped to handwheel or pinned directly to valve stem.

Designed for corrosive environments, our Stainless Steel Chainwheels are Type 316 investment steel castings. Ideal in chemical processing, outdoor installations, or salt water environments.

All Chainwheels are furnished with attachment hardware for clamping to handwheel. When Chainwheel is to be pinned to valve stem, two different direct mount adapters are available.

Corroded cast iron chainwheel illustrates an advantage of stainless steel chainwheels Above: Corroded cast iron chainwheel illustrates an advantage of stainless steel chainwheels

Pocket style chainwheels use smooth, welded link (proof coil) chain.

To prevent serious injury, we recommend the use of our Secondary Safety Retraint System.

Stainless Steel Chainwheel Specifications

Size
No.		 Diameter of
Chainwheel		 Range of Handwheels
Chainwheel Will Fit		 Weight Bore
Diam.		 Length of
Chain Required
(2x Drop)
SS-4D 105mm 40mm – 114mm 2.1 kg 12.7mm Plus 305mm
SS-6D 149mm 54mm – 159mm 3.8 kg 21.5mm Plus 305mm
SS-8B 203mm 190mm – 267mm 6.3 kg 38.1mm Plus 457mm
SS-12B 295mm 216mm – 343mm 8.7 kg 38.1mm Plus 457mm
SS-15B 386mm 241mm – 445mm 10.9 kg 38.1mm Plus 610mm
SS-22B 565mm 330mm – 635mm 14.8 kg 38.1mm Plus 915mm
SS-29B 743mm 450mm – 813mm 20.1 kg 38.1mm Plus 1219mm
SS-29C 743mm 571mm – 940mm 20.1 kg 38.1mm Plus 1219mm
SS Series 316L Stainless Steel Machine Chain Stainless Steel Machine Chain
SS Series Connecting Link, Stainless Steel Stainless Steel Connecting Link
